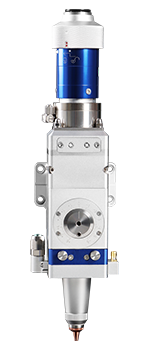

SW18 3D cutting head

Product featuresThis cutting head is mainly used for laser below 2000WThe internal structure of the laser head is completely sealed to avoid the contamination of the optical lensArchimedes helix is us

Service hotline:

0755-27702280

Product features

  1. This cutting head is mainly used for laser below 2000W

  2. The internal structure of the laser head is completely sealed to avoid the contamination of the optical lens

  3. Archimedes helix is used in the focusing structure, which can achieve a larger focusing range (± 6mm) on a smaller structure, and the adjustment is accurate and reliable

  4. The structure of protective mirror adopts drawer type, which is easy to replace

  5. It can be used in all kinds of lasers with QBH fiber connectors

  6. The whole structure is light and compact, which is suitable for manipulator


三维切割头 SW18_万顺兴

Maximum air pressure25BarHorizontal adjustment range±1.5mmEffective aperture20mm
Collimating focal length75mm/100mmVertical focusing range±6mmweight5.5kg
Focal length125mm/150mm/190mmApplicable power≤2000W
