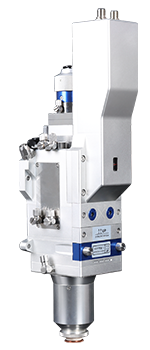

NC150 optical fiber auto focusing cutting head

Product features【1】 Fast focusing: precise focusing structure and precise and fast servo motor control system are adopted to significantly improve the perforation efficiency.【2】 Condition monitoring:

Service hotline:

0755-27702280

Product features

【1】 Fast focusing: precise focusing structure and precise and fast servo motor control system are adopted to significantly improve the perforation efficiency.

【2】 Condition monitoring: the temperature, humidity, air pressure and other monitoring sensors are set inside, which can monitor the operation status of the cutting head in real time. If the status is abnormal, the alarm signal can be output in time to ensure the safe and stable operation of the cutting head.

【3】 Efficient cooling: cavity water cooling, air cooling design, can avoid the problem of bad cutting caused by abnormal temperature.

【4】 Highly sealed: the internal structure is highly sealed, which can prevent the optical lens from being polluted by the external environment and prolong the service life of the lens.

【5】 Stable optical configuration and balanced smooth air flow structure significantly improve the cutting efficiency and cutting quality.

Product parameters

Maximum air pressure25 BarHorizontal adjustment range±1.5 mmEffective apertureφ32 mm
Collimating focal length100 mmVertical focusing range-16mm~+20mmweight7.5 kg
Focal length200 mmApplicable power≤ 15KW
